为什么使用 Loki

它有哪些优点：

• 支持的客户端，如 Promtail，Fluentbit，Fluentd，Vector，Logstash 和 Grafana Agent

• 首选代理 Promtail，可以多来源提取日志，包括本地日志文件，systemd，Windows 事件日志，Docker 日志记录驱动程序等

• 没有日志格式要求，包括 JSON，XML，CSV，logfmt，非结构化文本

• 使用与查询指标相同的语法查询日志

• 日志查询时允许动态筛选和转换日志行

• 可以轻松地计算日志中的需要的指标

• 引入时的最小索引意味着您可以在查询时动态地对日志进行切片和切块，以便在出现新问题时回答它们

• 云原生支持，使用 Prometheus 形式抓取数据

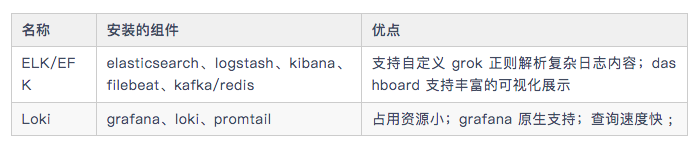

各日志收集组件简单对比：

Loki 的工作方式

从上面的图中我们可以看到，它在解析日志的时候是以 index 为主的，index 包括时间戳和 pod 的部分 label（其他 label 为 filename、containers 等），其余的是日志内容。具体查询效果如下：

{app=”loki”,namespace=”kube-public”} 为索引。

日志搜集架构

在使用过程中，官方推荐使用 promtail 做为 agent 以 DaemonSet 方式部署在 kubernetes 的 worker 节点上搜集日志。另外也可以用上面提到的其他日志收集工具来收取，这篇文章在结尾处会附上其他工具的配置方式。

Loki 部署模式有哪些

• all（读写模式）

• read/write（读写分离模式）

• 微服务模式运行

大显身手之服务端部署

• AllInOne 部署模式

k8s部署

auth_enabled: falsetarget: allballast_bytes: 20480server:  grpc_listen_port: 9095  http_listen_port: 3100  graceful_shutdown_timeout: 20s  grpc_listen_address: "0.0.0.0"  grpc_listen_network: "tcp"  grpc_server_max_concurrent_streams: 100  grpc_server_max_recv_msg_size: 4194304  grpc_server_max_send_msg_size: 4194304  http_server_idle_timeout: 2m  http_listen_address: "0.0.0.0"  http_listen_network: "tcp"  http_server_read_timeout: 30s  http_server_write_timeout: 20s  log_source_ips_enabled: true  ## http_path_prefix如果需要更改，在推送日志的时候前缀都需要加指定的内容  ## http_path_prefix: "/"  register_instrumentation: true  log_format: json  log_level: infodistributor:  ring:    heartbeat_timeout: 3s    kvstore:      prefix: collectors/      store: memberlist      ## 需要提前创建好consul集群    ##   consul:    ##     http_client_timeout: 20s    ##     consistent_reads: true    ##     host: 127.0.0.1:8500    ##     watch_burst_size: 2    ##     watch_rate_limit: 2querier:  engine:    max_look_back_period: 20s     timeout: 3m0s   extra_query_delay: 100ms   max_concurrent: 10   multi_tenant_queries_enabled: true  query_ingester_only: false  query_ingesters_within: 3h0m0s  query_store_only: false  query_timeout: 5m0s  tail_max_duration: 1h0squery_scheduler:  max_outstanding_requests_per_tenant: 2048  grpc_client_config:    max_recv_msg_size: 104857600    max_send_msg_size: 16777216    grpc_compression: gzip    rate_limit: 0    rate_limit_burst: 0    backoff_on_ratelimits: false    backoff_config:      min_period: 50ms      max_period: 15s      max_retries: 5   use_scheduler_ring: true  scheduler_ring:    kvstore:      store: memberlist      prefix: "collectors/"    heartbeat_period: 30s    heartbeat_timeout: 1m0s    ## 默认第一个网卡的名称    ## instance_interface_names    ## instance_addr: 127.0.0.1    ## 默认server.grpc-listen-port    instance_port: 9095frontend:  max_outstanding_per_tenant: 4096  querier_forget_delay: 1h0s  compress_responses: true  log_queries_longer_than: 2m0s  max_body_size: 104857600  query_stats_enabled: true  scheduler_dns_lookup_period: 10s   scheduler_worker_concurrency: 15query_range:  align_queries_with_step: true  cache_results: true  parallelise_shardable_queries: true  max_retries: 3  results_cache:    cache:      enable_fifocache: false      default_validity: 30s       background:        writeback_buffer: 10000      redis:        endpoint: 127.0.0.1:6379        timeout: 1s        expiration: 0s         db: 9        pool_size: 128         password: 1521Qyx6^        tls_enabled: false        tls_insecure_skip_verify: true        idle_timeout: 10s         max_connection_age: 8hruler:  enable_api: true  enable_sharding: true  alertmanager_refresh_interval: 1m  disable_rule_group_label: false  evaluation_interval: 1m0s  flush_period: 3m0s  for_grace_period: 20m0s  for_outage_tolerance: 1h0s  notification_queue_capacity: 10000  notification_timeout: 4s  poll_interval: 10m0s  query_stats_enabled: true  remote_write:    config_refresh_period: 10s    enabled: false  resend_delay: 2m0s  rule_path: /rulers  search_pending_for: 5m0s  storage:    local:      directory: /data/loki/rulers    type: configdb  sharding_strategy: default  wal_cleaner:    period:  240h    min_age: 12h0m0s  wal:    dir: /data/loki/ruler_wal    max_age: 4h0m0s    min_age: 5m0s    truncate_frequency: 1h0m0s  ring:    kvstore:      store: memberlist      prefix: "collectors/"    heartbeat_period: 5s    heartbeat_timeout: 1m0s    ## instance_addr: "127.0.0.1"    ## instance_id: "miyamoto.en0"    ## instance_interface_names: ["en0","lo0"]    instance_port: 9500    num_tokens: 100ingester_client:  pool_config:    health_check_ingesters: false    client_cleanup_period: 10s     remote_timeout: 3s  remote_timeout: 5s ingester:  autoforget_unhealthy: true  chunk_encoding: gzip  chunk_target_size: 1572864  max_transfer_retries: 0  sync_min_utilization: 3.5  sync_period: 20s  flush_check_period: 30s   flush_op_timeout: 10m0s  chunk_retain_period: 1m30s  chunk_block_size: 262144  chunk_idle_period: 1h0s  max_returned_stream_errors: 20  concurrent_flushes: 3  index_shards: 32  max_chunk_age: 2h0m0s  query_store_max_look_back_period: 3h30m30s  wal:    enabled: true    dir: /data/loki/wal     flush_on_shutdown: true    checkpoint_duration: 15m    replay_memory_ceiling: 2GB  lifecycler:    ring:      kvstore:        store: memberlist        prefix: "collectors/"      heartbeat_timeout: 30s       replication_factor: 1    num_tokens: 128    heartbeat_period: 5s     join_after: 5s     observe_period: 1m0s    ## interface_names: ["en0","lo0"]    final_sleep: 10s     min_ready_duration: 15sstorage_config:  boltdb:    directory: /data/loki/boltdb   boltdb_shipper:    active_index_directory: /data/loki/active_index    build_per_tenant_index: true    cache_location: /data/loki/cache     cache_ttl: 48h    resync_interval: 5m    query_ready_num_days: 5    index_gateway_client:      grpc_client_config:  filesystem:    directory: /data/loki/chunkschunk_store_config:  chunk_cache_config:    enable_fifocache: true    default_validity: 30s    background:      writeback_buffer: 10000    redis:      endpoint: 192.168.3.56:6379      timeout: 1s      expiration: 0s       db: 8       pool_size: 128       password: 1521Qyx6^      tls_enabled: false      tls_insecure_skip_verify: true      idle_timeout: 10s       max_connection_age: 8h    fifocache:      ttl: 1h      validity: 30m0s      max_size_items: 2000      max_size_bytes: 500MB  write_dedupe_cache_config:    enable_fifocache: true    default_validity: 30s     background:      writeback_buffer: 10000    redis:      endpoint: 127.0.0.1:6379      timeout: 1s      expiration: 0s       db: 7      pool_size: 128       password: 1521Qyx6^      tls_enabled: false      tls_insecure_skip_verify: true      idle_timeout: 10s       max_connection_age: 8h    fifocache:      ttl: 1h      validity: 30m0s      max_size_items: 2000      max_size_bytes: 500MB  cache_lookups_older_than: 10s ## 压缩碎片索引compactor:  shared_store: filesystem  shared_store_key_prefix: index/  working_directory: /data/loki/compactor  compaction_interval: 10m0s  retention_enabled: true  retention_delete_delay: 2h0m0s  retention_delete_worker_count: 150  delete_request_cancel_period: 24h0m0s  max_compaction_parallelism: 2  ## compactor_ring:frontend_worker:  match_max_concurrent: true  parallelism: 10  dns_lookup_duration: 5s ## runtime_config 这里没有配置任何信息## runtime_config:common:  storage:    filesystem:      chunks_directory: /data/loki/chunks      fules_directory: /data/loki/rulers  replication_factor: 3  persist_tokens: false  ## instance_interface_names: ["en0","eth0","ens33"]analytics:  reporting_enabled: falselimits_config:  ingestion_rate_strategy: global  ingestion_rate_mb: 100  ingestion_burst_size_mb: 18  max_label_name_length: 2096  max_label_value_length: 2048  max_label_names_per_series: 60  enforce_metric_name: true  max_entries_limit_per_query: 5000  reject_old_samples: true  reject_old_samples_max_age: 168h  creation_grace_period: 20m0s  max_global_streams_per_user: 5000  unordered_writes: true  max_chunks_per_query: 200000  max_query_length: 721h  max_query_parallelism: 64   max_query_series: 700  cardinality_limit: 100000  max_streams_matchers_per_query: 1000   max_concurrent_tail_requests: 10   ruler_evaluation_delay_duration: 3s   ruler_max_rules_per_rule_group: 0  ruler_max_rule_groups_per_tenant: 0  retention_period: 700h  per_tenant_override_period: 20s   max_cache_freshness_per_query: 2m0s  max_queriers_per_tenant: 0  per_stream_rate_limit: 6MB  per_stream_rate_limit_burst: 50MB  max_query_lookback: 0  ruler_remote_write_disabled: false  min_sharding_lookback: 0s  split_queries_by_interval: 10m0s  max_line_size: 30mb  max_line_size_truncate: false  max_streams_per_user: 0
## memberlist_conig模块配置gossip用于在分发服务器、摄取器和查询器之间发现和连接。## 所有三个组件的配置都是唯一的，以确保单个共享环。## 至少定义了1个join_members配置后，将自动为分发服务器、摄取器和ring 配置memberlist类型的kvstorememberlist:  randomize_node_name: true  stream_timeout: 5s   retransmit_factor: 4  join_members:  - 'loki-memberlist'  abort_if_cluster_join_fails: true  advertise_addr: 0.0.0.0  advertise_port: 7946  bind_addr: ["0.0.0.0"]  bind_port: 7946  compression_enabled: true  dead_node_reclaim_time: 30s  gossip_interval: 100ms  gossip_nodes: 3  gossip_to_dead_nodes_time: 3  ## join:  leave_timeout: 15s  left_ingesters_timeout: 3m0s   max_join_backoff: 1m0s  max_join_retries: 5  message_history_buffer_bytes: 4096  min_join_backoff: 2s  ## node_name: miyamoto  packet_dial_timeout: 5s  packet_write_timeout: 5s   pull_push_interval: 100ms  rejoin_interval: 10s  tls_enabled: false  tls_insecure_skip_verify: trueschema_config:  configs:  - from: "2020-10-24"    index:      period: 24h      prefix: index_    object_store: filesystem    schema: v11    store: boltdb-shipper    chunks:      period: 168h    row_shards: 32table_manager:  retention_deletes_enabled: false  retention_period: 0s  throughput_updates_disabled: false  poll_interval: 3m0s  creation_grace_period: 20m  index_tables_provisioning:    provisioned_write_throughput: 1000    provisioned_read_throughput: 500    inactive_write_throughput: 4    inactive_read_throughput: 300    inactive_write_scale_lastn: 50     enable_inactive_throughput_on_demand_mode: true    enable_ondemand_throughput_mode: true    inactive_read_scale_lastn: 10     write_scale:      enabled: true      target: 80      ## role_arn:      out_cooldown: 1800      min_capacity: 3000      max_capacity: 6000      in_cooldown: 1800    inactive_write_scale:      enabled: true      target: 80      out_cooldown: 1800      min_capacity: 3000      max_capacity: 6000      in_cooldown: 1800    read_scale:      enabled: true      target: 80      out_cooldown: 1800      min_capacity: 3000      max_capacity: 6000      in_cooldown: 1800    inactive_read_scale:      enabled: true      target: 80      out_cooldown: 1800      min_capacity: 3000      max_capacity: 6000      in_cooldown: 1800  chunk_tables_provisioning:    enable_inactive_throughput_on_demand_mode: true    enable_ondemand_throughput_mode: true    provisioned_write_throughput: 1000    provisioned_read_throughput: 300    inactive_write_throughput: 1    inactive_write_scale_lastn: 50    inactive_read_throughput: 300    inactive_read_scale_lastn: 10    write_scale:      enabled: true      target: 80      out_cooldown: 1800      min_capacity: 3000      max_capacity: 6000      in_cooldown: 1800    inactive_write_scale:      enabled: true      target: 80      out_cooldown: 1800      min_capacity: 3000      max_capacity: 6000      in_cooldown: 1800    read_scale:      enabled: true      target: 80      out_cooldown: 1800      min_capacity: 3000      max_capacity: 6000      in_cooldown: 1800    inactive_read_scale:      enabled: true      target: 80      out_cooldown: 1800      min_capacity: 3000      max_capacity: 6000      in_cooldown: 1800tracing:  enabled: true

注意 :


ingester.lifecycler.ring.replication_factor 的值在单实例的情况下为 1


ingester.lifecycler.min_ready_duration 的值为 15s，在启动后默认会显示 15 秒将状态变为 ready





memberlist.node_name 的值可以不用设置，默认是当前主机的名称


memberlist.join_members 是一个列表，在有多个实例的情况下需要添加各个节点的主机名 /IP 地址。
在 k8s 里面可以设置成一个 service 绑定到 StatefulSets。


query_range.results_cache.cache.enable_fifocache 建议设置为 false，我这里设置成了 true


instance_interface_names 是一个列表，默认的为["en0","eth0"]，可以根据需要设置对应的网卡名称，一般不需要进行特殊设置。


创建 configmap
说明：将上面的内容写入到一个文件 loki-all.yaml，把它作为一个 configmap 写入 k8s 集群。可以使用如下命令创建：
$ kubectl create configmap --from-file ./loki-all.yaml loki-all

可以通过命令查看到已经创建好的 configmap，具体操作详见下图

创建持久化存储
在 k8s 里面我们的数据是需要进行持久化的。Loki 收集起来的日志信息对于业务来说是至关重要的，因此需要在容器重启的时候日志能够保留下来。那么就需要用到 pv、pvc，后端存储可以使用 nfs、glusterfs、hostPath、azureDisk、cephfs 等 20 种支持类型，这里因为没有对应的环境就采用了 hostPath 方式。
以下配置文件也特别长：
apiVersion: v1kind: PersistentVolumemetadata:  name: loki  namespace: defaultspec:  hostPath:    path: /glusterfs/loki    type: DirectoryOrCreate  capacity:    storage: 1Gi  accessModes:    - ReadWriteMany---apiVersion: v1kind: PersistentVolumeClaimmetadata:  name: loki  namespace: defaultspec:  accessModes:    - ReadWriteMany  resources:    requests:      storage: 1Gi  volumeName: loki创建应用准备好 k8s 的 StatefulSet 部署文件后就可以直接在集群里面创建应用了。
apiVersion: apps/v1kind: StatefulSetmetadata:  labels:    app: loki  name: loki  namespace: defaultspec:  podManagementPolicy: OrderedReady  replicas: 1  selector:    matchLabels:      app: loki  template:    metadata:      annotations:        prometheus.io/port: http-metrics        prometheus.io/scrape: "true"      labels:        app: loki    spec:      containers:      - args:        - -config.file=/etc/loki/loki-all.yaml        image: grafana/loki:2.5.0        imagePullPolicy: IfNotPresent        livenessProbe:          failureThreshold: 3          httpGet:            path: /ready            port: http-metrics            scheme: HTTP          initialDelaySeconds: 45          periodSeconds: 10          successThreshold: 1          timeoutSeconds: 1        name: loki        ports:        - containerPort: 3100          name: http-metrics          protocol: TCP        - containerPort: 9095          name: grpc          protocol: TCP        - containerPort: 7946          name: memberlist-port          protocol: TCP        readinessProbe:          failureThreshold: 3          httpGet:            path: /ready            port: http-metrics            scheme: HTTP          initialDelaySeconds: 45          periodSeconds: 10          successThreshold: 1          timeoutSeconds: 1        resources:          requests:            cpu: 500m            memory: 500Mi          limits:            cpu: 500m            memory: 500Mi        securityContext:          readOnlyRootFilesystem: true        volumeMounts:        - mountPath: /etc/loki          name: config        - mountPath: /data          name: storage      restartPolicy: Always      securityContext:        fsGroup: 10001        runAsGroup: 10001        runAsNonRoot: true        runAsUser: 10001      serviceAccount: loki      serviceAccountName: loki      volumes:      - emptyDir: {}        name: tmp      - name: config        configMap:          name: loki      - persistentVolumeClaim:          claimName: loki        name: storage---kind: ServiceapiVersion: v1metadata:  name: loki-memberlist  namespace: defaultspec:  ports:    - name: loki-memberlist      protocol: TCP      port: 7946      targetPort: 7946  selector:    kubepi.org/name: loki---kind: ServiceapiVersion: v1metadata:  name: loki  namespace: defaultspec:  ports:    - name: loki      protocol: TCP      port: 3100      targetPort: 3100  selector:    kubepi.org/name: loki

验证部署结果

当看到上面的 Running 状态时可以通过 API 的方式看一下分发器是不是正常工作，当显示 Active 时正常才会正常分发日志流到收集器（ingester)。

限于篇幅，更多部署方式，就不介绍了。
故障解决方案
502 BadGateWay


loki 的地址填写不正确
http://LokiServiceName
http://LokiServiceName.namespace
http://LokiServiceName.namespace:ServicePort
在 k8s 里面，地址填写错误造成了 502。
检查一下 loki 的地址是否是以下内容：

grafana 和 loki 在不同的节点上，检查一下节点间网络通信状态、防火墙策略


Ingester not ready: instance xx:9095 in state JOINING


耐心等待一会，因为是 allInOne 模式程序启动需要一定的时间。


too many unhealthy instances in the ring


将 ingester.lifecycler.replication_factor 改为 1，是因为这个设置不正确造成的。这个在启动的时候会设置为多个复制源，但当前只部署了一个所以在查看 label 的时候提示这个。


Data source connected, but no labels received. Verify that Loki and Promtail is configured properly


promtail 无法将收集到的日志发送给 loki，许可检查一下 promtail 的输出是不是正常；


promtail 在 loki 还没有准备就绪的时候把日志发送过来了，但 loki 没有接收到。
如果需要重新接收日志，需要删除 positions.yaml 文件，具体路径可以用 find 查找一下位置；


promtail 忽略了目标日志文件或者配置文件错误造成的无法正常启动；


promtail 无法在指定的位置发现日志文件 配置文件参考 1[3]。
