一次容器慢启动的“终极”排查，终于让我找到了罪魁祸首！

近期内部进行 Containerd 替换 dockershim 测试，我们观测到业务容器在启动后需要很长时间才能正常运行。其中 init 容器在一秒内完成，但是容器有时需要超过一分钟才开始执行。
查看 kubelet 日志，发现当节点刚启动时，PLEG 的 Relisting 方法（通常每秒运行一次）需要超过30秒才能完成。但是过来了几分钟后，这个现象就消失了，最终“Relisting”方法按预期的每秒一次的频率运行。
这个观察结果表明，在节点刚启动时可能存在一些问题，导致容器执行延迟，但随着节点运行，这个问题会自动消失，容器最终都正常运行。
kubelet_init[1680]: I0602 05:48:06.350695    1679 generic.go:191] "GenericPLEG: Relisting"kubelet_init[1680]: I0602 05:48:07.352436    1679 generic.go:191] "GenericPLEG: Relisting"kubelet_init[1680]: I0602 05:48:49.669827    1679 generic.go:191] "GenericPLEG: Relisting"kubelet_init[1680]: I0602 05:48:50.672822    1679 generic.go:191] "GenericPLEG: Relisting"kubelet_init[1680]: I0602 05:48:51.676857    1679 generic.go:191] "GenericPLEG: Relisting"




其中 containerd 的配置 config.toml 如下所示：


version = 2root = "/var/lib/containerd"state = "/run/containerd"
[grpc]address = "/run/containerd/containerd.sock"
[plugins."io.containerd.grpc.v1.cri".containerd]default_runtime_name = "runc"
[plugins."io.containerd.grpc.v1.cri".registry]config_path = "/etc/containerd/certs.d:/etc/docker/certs.d"
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc]runtime_type = "io.containerd.runc.v2"
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc.options]SystemdCgroup = true
[plugins."io.containerd.grpc.v1.cri".cni]bin_dir = "/opt/cni/bin"conf_dir = "/etc/cni/net.d"






NOTE：Containerd: 1.6.21，K8s: 1.19，Kernel: 5.15.0




01 技术背景


dockershim 与 CRI


2022年05月，Kubernetes 1.24 正式发布，比较引人注意是在这个版本中正式将dockershim 组件从 kubelet 中移除。

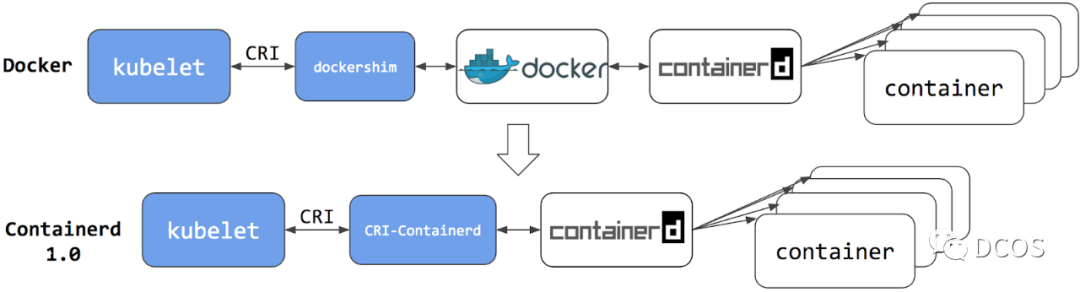

从这个版本开始，用户使用 Kubelet 时可以优先选择 containerd 或 CRI-O 作为容器运行时，其中 Containerd 架构演变如下所示，如需了解更多，参看Containerd深度剖析-runtime篇




PLEG

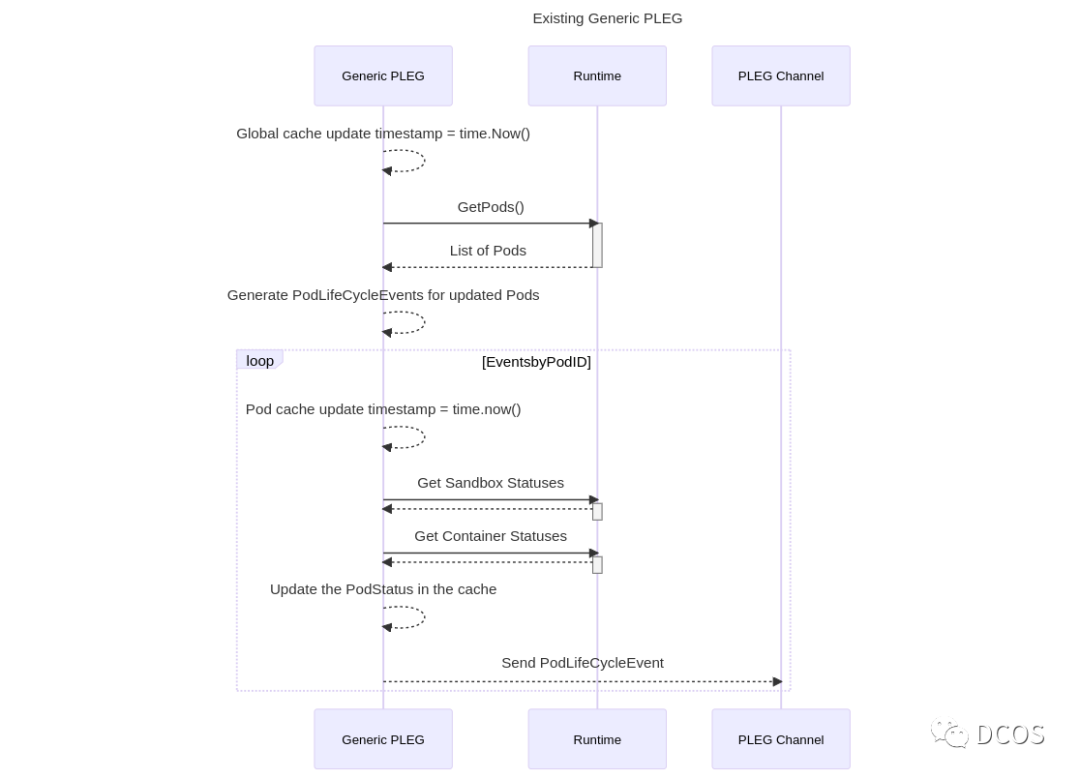

PLEG（Pod Lifecycle Event Generator），即Pod 生命周期事件生成器。在 Kubernetes 中（分布式架构），每个节点上都运行着一个守护进程 Kubelet 来管理节点上的容器，适时调整容器的实际状态以匹配 spec 中定义的状态（最终一致性）。


具体来说，Kubelet 需要对 pod 两个地方的变更做出及时的操作：




  •

    Pod spec 中定义的状态


    •

  •

    容器运行时的状态


    •



对于 Pod来说，Kubelet 会从多个数据来源（api、file以及http） watch Pod spec 中的变化。对于容器来说，Kubelet 会定期轮询容器运行时，以获取所有容器的最新状态。随着 Pod 和容器数量的增加，轮询会产生较大开销，带来的周期性大量并发请求会导致较高的 CPU 使用率峰值，降低节点性能，从而降低节点的可靠性。为了降低 Pod 的管理开销，提升 Kubelet 的性能和可扩展性，引入了 PLEG，改进了之前的工作方式：




  •

    减少空闲期间的不必要工作（例如 Pod 的定义和容器的状态没有发生更改）。


    •

  •

    减少获取容器状态的并发请求数量。


    •







注意：为了进一步降低损耗，社区推出了基于 event 实现的 PLEG，当然也需要 CRI 运行时支持




ImagePull




ctr image pull 对应的步骤如下：




  1.

    resolve用户需要下载的镜像


    2.

  2.

    从 registry pull 镜像，把镜像层内容和 config 保存进 content 服务，把镜像相关的元数据保存进 images 元数据服务


    3.

  3.

    unpack进snapshot服务


    4.





注意：这里的 content、images 等服务都是指 containerd 提供的 gRPC 服务，在解压每个 layer 时，containerd 会临时挂载/卸载所有父快照。




02 问题排除


基于上述的技术背景，可以知道 GenericPLEG:Relisting 调用了 containerd 的 CRI（Container Runtime Interface）来获取所有正在运行的容器列表。






  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •



// relist queries the container runtime for list of pods/containers, compare// with the internal pods/containers, and generates events accordingly.func (g *GenericPLEG) relist() {  klog.V(5).Infof("GenericPLEG: Relisting")
  if lastRelistTime := g.getRelistTime(); !lastRelistTime.IsZero() {    metrics.PLEGRelistInterval.Observe(metrics.SinceInSeconds(lastRelistTime))  }
  timestamp := g.clock.Now()  defer func() {    metrics.PLEGRelistDuration.Observe(metrics.SinceInSeconds(timestamp))  }()
  // Get all the pods.  podList, err := g.runtime.GetPods(true)




那么相应的，我们可以排查 containerd 日志，其日志表明 containerd 本身或者 shim 在停止容器时遇到了问题。


containerd[2206]: {"error":"failed to stop container: failed to delete task: context deadline exceeded: unknown","level":"error","msg":"failed to handle container TaskExit event u0026TaskExit{ContainerID:8f71eadd772ffde7f9537998844aa3f7a8a4f15ec182a5943ef0d60f242b1929,ID:8f71eadd772ffde7f9537998844aa3f7a8a4f15ec182a5943ef0d60f242b1929,Pid:3658,ExitStatus:0,ExitedAt:2023-06-15 06:39:36.566238047 +0000 UTC,XXX_unrecognized:[],}","time":"2023-06-15T06:39:46.568049942Z"}




因此获取在 goroutine dump日志，从中可以发现一个 goroutine 正在等待 Delete 调用。


goroutine 1654 [select]:github.com/containerd/ttrpc.(*Client).dispatch(0xc001ae1780, {0x56190174ac08?, 0xc000ae0180}, 0xc000ae05a0, 0xc0001183c0)  /go/src/github.com/containerd/containerd/vendor/github.com/containerd/ttrpc/client.go:163 +0x2adgithub.com/containerd/ttrpc.defaultClientInterceptor({0x56190174ac08?, 0xc000ae0180?}, 0x5619023eb940?, 0xc000f982a0?, 0x6993c8a9f?, 0x5619023eb940?)  /go/src/github.com/containerd/containerd/vendor/github.com/containerd/ttrpc/interceptor.go:49 +0x26github.com/containerd/ttrpc.(*Client).Call(0xc001ae1780, {0x56190174ac08, 0xc000ae0180}, {0x561900ea8b7f, 0x17}, {0x561900e8851e, 0x6}, {0x56190167d8a0?, 0xc000e6a880?}, {0x56190167d9e0, ...})  /go/src/github.com/containerd/containerd/vendor/github.com/containerd/ttrpc/client.go:132 +0x3acgithub.com/containerd/containerd/runtime/v2/task.(*taskClient).Delete(0xc00011a578, {0x56190174ac08, 0xc000ae0180}, 0x5618fff5830f?)  /go/src/github.com/containerd/containerd/runtime/v2/task/shim.pb.go:3609 +0x98github.com/containerd/containerd/runtime/v2.(*shimTask).delete(0xc00165e870, {0x56190174ac08, 0xc000ae0180}, 0xc0009ab988)  /go/src/github.com/containerd/containerd/runtime/v2/shim.go:275 +0xc2github.com/containerd/containerd/runtime/v2.(*TaskManager).Delete(0xc00040a0f8, {0x56190174ac08, 0xc000ae0180}, {0xc0013aaa40?, 0x40?})  /go/src/github.com/containerd/containerd/runtime/v2/manager.go:419 +0x8cgithub.com/containerd/containerd/services/tasks.(*local).Delete(0xc00070a5a0, {0x56190174ac08, 0xc000ae0180}, 0xc000d7cd50, {0x561901620fe0?, 0xc0009abab8?, 0x5618ffbcf13f?})  /go/src/github.com/containerd/containerd/services/tasks/local.go:291 +0x11agithub.com/containerd/containerd.(*task).Delete(0xc0006ba440, {0x56190174ac08, 0xc000ae0180}, {0xc000d08570, 0x2, 0x56190174b1f0?})  /go/src/github.com/containerd/containerd/task.go:332 +0x355github.com/containerd/containerd/pkg/cri/server.handleContainerExit({0x56190174ac08, 0xc000ae0180}, 0xc000ae0120, {{{0xc0013aaa40, 0x40}, {0xc000dfd7a0, 0x52}, {0xc001a8e240, 0x40}, 0xc001240380, ...}, ...})  /go/src/github.com/containerd/containerd/pkg/cri/server/events.go:387 +0x202github.com/containerd/containerd/pkg/cri/server.(*eventMonitor).startContainerExitMonitor.func1.1(0xc000089240, 0xc000ae0120)  /go/src/github.com/containerd/containerd/pkg/cri/server/events.go:190 +0x310github.com/containerd/containerd/pkg/cri/server.(*eventMonitor).startContainerExitMonitor.func1()  /go/src/github.com/containerd/containerd/pkg/cri/server/events.go:198 +0x37fcreated by github.com/containerd/containerd/pkg/cri/server.(*eventMonitor).startContainerExitMonitor  /go/src/github.com/containerd/containerd/pkg/cri/server/events.go:162 +0x12b




在 containerd-shim-runc-v2 中可以发现一个 goroutine 挂在了 umount 系统调用上


goroutine 104 [syscall]:syscall.Syscall(0x7c?, 0xc000161800?, 0xc0000c2200?, 0x7d?)        /usr/local/go/src/syscall/syscall_linux.go:68 +0x27golang.org/x/sys/unix.Unmount({0xc0000c2200?, 0x0?}, 0xc00029c448?)        /go/src/github.com/containerd/containerd/vendor/golang.org/x/sys/unix/zsyscall_linux.go:1680 +0x7dgithub.com/containerd/containerd/mount.unmount({0xc0000c2200, 0x7c}, 0x9ed280?)        /go/src/github.com/containerd/containerd/mount/mount_linux.go:155 +0x8cgithub.com/containerd/containerd/mount.UnmountAll({0xc0000c2200, 0x7c}, 0xc000065080?)        /go/src/github.com/containerd/containerd/mount/mount_linux.go:185 +0x8cgithub.com/containerd/containerd/pkg/process.(*Init).delete(0xc0000d2c60, {0x9f1460, 0xc000065080})        /go/src/github.com/containerd/containerd/pkg/process/init.go:312 +0x13agithub.com/containerd/containerd/pkg/process.(*stoppedState).Delete(0xc000012ab8, {0x9f1460?, 0xc000065080?})        /go/src/github.com/containerd/containerd/pkg/process/init_state.go:396 +0x2egithub.com/containerd/containerd/pkg/process.(*Init).Delete(0xc00002d180?, {0x9f1460?, 0xc000065080?})        /go/src/github.com/containerd/containerd/pkg/process/init.go:288 +0xb6github.com/containerd/containerd/runtime/v2/runc.(*Container).Delete(0xc000132380?, {0x9f1460, 0xc000065080}, 0xc0003071c0)        /go/src/github.com/containerd/containerd/runtime/v2/runc/container.go:390 +0x62github.com/containerd/containerd/runtime/v2/runc/task.(*service).Delete(0xc000132380, {0x9f1460, 0xc000065080}, 0xc0003071c0)        /go/src/github.com/containerd/containerd/runtime/v2/runc/task/service.go:216 +0x75github.com/containerd/containerd/runtime/v2/task.RegisterTaskService.func4({0x9f1460, 0xc000065080}, 0xc00002ee00)        /go/src/github.com/containerd/containerd/runtime/v2/task/shim.pb.go:3477 +0x98github.com/containerd/ttrpc.defaultServerInterceptor({0x9f1460?, 0xc000065080?}, 0x17?, 0xc000134760?, 0x6?)        /go/src/github.com/containerd/containerd/vendor/github.com/containerd/ttrpc/interceptor.go:45 +0x26github.com/containerd/ttrpc.(*serviceSet).dispatch(0xc000118650, {0x9f1460, 0xc000065080}, {0xc00002aba0, 0x17}, {0xc00027e22a, 0x6}, {0xc000180280, 0x42, 0x50})        /go/src/github.com/containerd/containerd/vendor/github.com/containerd/ttrpc/services.go:95 +0x1begithub.com/containerd/ttrpc.(*serviceSet).call(0xd0e330?, {0x9f1460?, 0xc000065080?}, {0xc00002aba0?, 0x84eac0?}, {0xc00027e22a?, 0xc000308000?}, {0xc000180280, 0x42, 0x50})        /go/src/github.com/containerd/containerd/vendor/github.com/containerd/ttrpc/services.go:64 +0x71github.com/containerd/ttrpc.(*serverConn).run.func2(0x1b)        /go/src/github.com/containerd/containerd/vendor/github.com/containerd/ttrpc/server.go:439 +0xe5created by github.com/containerd/ttrpc.(*serverConn).run        /go/src/github.com/containerd/containerd/vendor/github.com/containerd/ttrpc/server.go:435 +0x6b1




这时候，我们的排查思路可以回到 containerd.log，通过查看 containerd.log，可以发现 UpdateContainerResources 请求，在等待 bbolt 锁：


goroutine 1723 [semacquire]:sync.runtime_SemacquireMutex(0xc001a78300?, 0x9?, 0xc001500c00?)  /usr/local/go/src/runtime/sema.go:77 +0x25sync.(*Mutex).lockSlow(0xc0002f9178)  /usr/local/go/src/sync/mutex.go:171 +0x165sync.(*Mutex).Lock(...)  /usr/local/go/src/sync/mutex.go:90go.etcd.io/bbolt.(*DB).beginRWTx(0xc0002f8fc0)  /go/src/github.com/containerd/containerd/vendor/go.etcd.io/bbolt/db.go:640 +0x77go.etcd.io/bbolt.(*DB).Begin(0xc001739a70?, 0x87?)  /go/src/github.com/containerd/containerd/vendor/go.etcd.io/bbolt/db.go:589 +0x1dgo.etcd.io/bbolt.(*DB).Update(0x20?, 0xc000b44be0)  /go/src/github.com/containerd/containerd/vendor/go.etcd.io/bbolt/db.go:725 +0x3egithub.com/containerd/containerd/metadata.(*DB).Update(0xc0001e92d0, 0x56190174ac40?)  /go/src/github.com/containerd/containerd/metadata/db.go:246 +0x9egithub.com/containerd/containerd/services/containers.(*local).withStoreUpdate(0xc0003e8840, {0x56190174ac40?, 0xc0017390b0?}, 0x0?)  /go/src/github.com/containerd/containerd/services/containers/local.go:212 +0x3cgithub.com/containerd/containerd/services/containers.(*local).Update(0xc0003e8840, {0x56190174ac40, 0xc0017390b0}, 0xc000eb0540, {0xedc1ca928?, 0x0?, 0xc0017399b0?})  /go/src/github.com/containerd/containerd/services/containers/local.go:156 +0x24egithub.com/containerd/containerd.(*remoteContainers).Update(_, {_, _}, {{0xc00136b280, 0x40}, 0xc0017398f0, {0xc0016cc280, 0x96}, {{0xc00145a9f0, 0x15}, ...}, ...}, ...)  /go/src/github.com/containerd/containerd/containerstore.go:129 +0x2cegithub.com/containerd/containerd.(*container).Update(0xc0006e4a80, {0x56190174ac40, 0xc0017390b0}, {0xc00040a0f0, 0x1, 0xc0016f0101?})  /go/src/github.com/containerd/containerd/container.go:318 +0x214github.com/containerd/containerd/pkg/cri/server.updateContainerSpec({0x56190174ac40, 0xc0017390b0}, {0x561901754a58, 0xc0006e4a80}, 0xc0016f4b80)




而这部分代码的实现位于：


containerd/pkg/cri/server/container_update_resources.go


func (c *criService) UpdateContainerResources(ctx context.Context, r *runtime.UpdateContainerResourcesRequest) (retRes *runtime.UpdateContainerResourcesResponse, retErr error) {    container, err := c.containerStore.Get(r.GetContainerId())    if err != nil {      return nil, fmt.Errorf("failed to find container: %w", err)    }    // Update resources in status update transaction, so that:    // 1) There won't be race condition with container start.    // 2) There won't be concurrent resource update to the same container.    if err := container.Status.UpdateSync(func(status containerstore.Status) (containerstore.Status, error) {      return c.updateContainerResources(ctx, container, r, status)    }); err != nil {      return nil, fmt.Errorf("failed to update resources: %w", err)    }    return &runtime.UpdateContainerResourcesResponse{}, nil




UpdateContainerResources 持有容器状态的锁，而 ListContainers 需要使用该锁，这就导致 PLEG （Pod Lifecycle Event Generator）花费很长时间。


goroutine 1665 [semacquire]:sync.runtime_SemacquireMutex(0xe69?, 0xae?, 0x1768c1d3f53d5f79?)  /usr/local/go/src/runtime/sema.go:77 +0x25sync.(*RWMutex).RLock(...)  /usr/local/go/src/sync/rwmutex.go:71github.com/containerd/containerd/pkg/cri/store/container.(*statusStorage).Get(0xc00058a880?)  /go/src/github.com/containerd/containerd/pkg/cri/store/container/status.go:205 +0x9cgithub.com/containerd/containerd/pkg/cri/server.toCRIContainer({{{0xc00136b280, 0x40}, {0xc00186b6d0, 0x4d}, {0xc001a8e6c0, 0x40}, 0xc0007129a0, {0xc00050eb40, 0x47}, {0xc000dfcd80, ...}, ...}, ...})  /go/src/github.com/containerd/containerd/pkg/cri/server/container_list.go:48 +0x3fgithub.com/containerd/containerd/pkg/cri/server.(*criService).ListContainers(0xc000548400, {0xc0006027b0?, 0x561900e89376?}, 0xc000ef6130)  /go/src/github.com/containerd/containerd/pkg/cri/server/container_list.go:37 +0x205github.com/containerd/containerd/pkg/cri/server.(*instrumentedService).ListContainers(0xc000708168, {0x56190174ac40, 0xc0006027b0}, 0xc000ef6130)  /go/src/github.com/containerd/containerd/pkg/cri/server/instrumented_service.go:515 +0x1d3




UpdateContainerResource 持有 bbolt 数据库的锁，其正在尝试将数据同步到存储中，因此我们猜测此时主机 I/O 存在压力，如果启用 cgroup v2，可以通过查看 io pressure 文件（后续我们介绍一下 PSI），或者通过 iostat 命令。


goroutine 1268 [syscall]:syscall.Syscall(0x0?, 0x0?, 0xc000984000?, 0x686?)  /usr/local/go/src/syscall/syscall_linux.go:68 +0x27syscall.Fsync(0x0?)  /usr/local/go/src/syscall/zsyscall_linux_amd64.go:423 +0x2ainternal/poll.(*FD).Fsync.func1(...)  /usr/local/go/src/internal/poll/fd_fsync_posix.go:18internal/poll.ignoringEINTR(...)  /usr/local/go/src/internal/poll/fd_posix.go:74internal/poll.(*FD).Fsync(0x0?)  /usr/local/go/src/internal/poll/fd_fsync_posix.go:17 +0xf4os.(*File).Sync(0xc00011a6b8)  /usr/local/go/src/os/file_posix.go:168 +0x4egithub.com/containerd/containerd/content/local.(*writer).Commit(0xc0008c7880, {0x56190174ac40, 0xc0006028a0}, 0x181ebe95, {0xc001476780, 0x47}, {0x0, 0x0, 0x5619023eb940?})  /go/src/github.com/containerd/containerd/content/local/writer.go:95 +0x24egithub.com/containerd/containerd/metadata.(*namespacedWriter).commit(0xc0006f5320, {0x56190174ac40, 0xc0006028a0}, 0x0?, 0x181ebe95, {0xc001476780, 0x47}, {0x0, 0x0, 0x0})  /go/src/github.com/containerd/containerd/metadata/content.go:641 +0x5bfgithub.com/containerd/containerd/metadata.(*namespacedWriter).Commit.func1(0x0?)  /go/src/github.com/containerd/containerd/metadata/content.go:578 +0x8fgo.etcd.io/bbolt.(*DB).Update(0x0?, 0xc000bb01e0)  /go/src/github.com/containerd/containerd/vendor/go.etcd.io/bbolt/db.go:741 +0x82github.com/containerd/containerd/metadata.(*DB).Update(0xc0001e92d0, 0x5619014f3000?)  /go/src/github.com/containerd/containerd/metadata/db.go:246 +0x9egithub.com/containerd/containerd/metadata.update({0x56190174ac40?, 0xc0006028a0?}, {0x561901738b90, 0xc0001e92d0}, 0xc000




为了验证上述排查思路，我们换了一台节点，移除 dockershim，重启机器后，发现大量 image pull（因为 containerd 存储的 image 与 docker 是不一致，所有 kubelet 启动容器时需要拉取镜像），这时候通过 iostat 发现 IO 非常高，原因是什么？


对于频繁的镜像 pull和 unpack，导致磁盘争用的问题，正如技术背景中提到的 ImagePull 的过程，虽然 ImagePull 不会强制刷新所有脏页到磁盘，但 umount 会这样做。


如何解决这个问题？


我们只需要避免 umount 时的强制刷新，即使有再多镜像拉取，这种现象也能得到缓解。


03 问题修复


我们在社区找到了相应的修复方案，PR#8676 为 overlay 插件添加 mount option，以使用 volatile，该特性需要 overlay 内核存储的支持，https://docs.kernel.org/filesystems/overlayfs.html#volatile-mount。


注：volatile 可以实现跳过 sync 调用，这样 umount 不会因为同步到磁盘而出现卡顿。




由于笔者时间、视野、认知有限，本文难免出现错误、疏漏等问题，期待各位读者朋友、业界专家指正交流，上述排障信息已修改为社区内容。
